How to attach metal grommets?

Attaching metal grommets eyelets correctly is fundamental for reinforcing holes in bags, leather crafts, and clothing. The process involves marking the desired position, creating a clean pilot hole, inserting the grommet barrel from the front, placing the washer on the reverse, and crimping them together using either manual setting tools or pneumatic presses. Precision in hole size and proper alignment ensures the grommet sits flush and distributes stress evenly across the material, preventing tearing or premature failure.

Understanding Metal Grommets and Eyelets

Defining Grommets and Eyelets

Grommets and eyelets are both used for the same thing, but they are made and used in different ways. An eyelet is a one-piece part with a barrel and a lip that folds back on itself and goes through cloth. Grommets, on the other hand, are made up of two parts: a barrel with a flange and a separate washer that fits on the back. Because they are made of two parts, grommets are better for heavy-duty uses where load-bearing ability is important.

Material Options and Their Impact on Performance

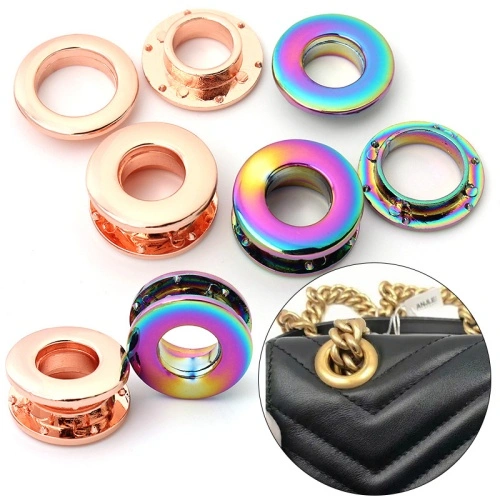

Zinc alloy grommets such as our round alloy eyelet grommet with a 30mm outer diameter, 15mm inner diameter and light gold finish can be of great benefit to bag makers. Zinc metal is less expensive than brass or stainless steel, yet it lasts longer than those materials. Brass is the greatest material for high-end leather items. It does not rust and looks nice. Stainless steel grommets are perfect for marine environments or outdoor gear that is continuously exposed to water. Aluminium choices are lower weight for travel bags without losing the strength.

Common Applications in the Bag Manufacturing Industry

Metal rings on handbags, backpacks, tote bags and luggage add stress point strength. They keep your gym bags breathing, your strap attachments in position and stop the channels for your drawstrings from fraying. Grommets in leather crafts can allow you to construct adjustable belts and neat sewing. Smaller eyelets are used in garments for shoelace holes and corset designs. Metal gear is not only about strength, it's also about style and can make your business stand out with finishes such as light gold, silver, antique bronze or polished nickel.

Preparing to Attach Metal Grommets – Tools and Materials Needed

Essential Hand Tools for Manual Installation

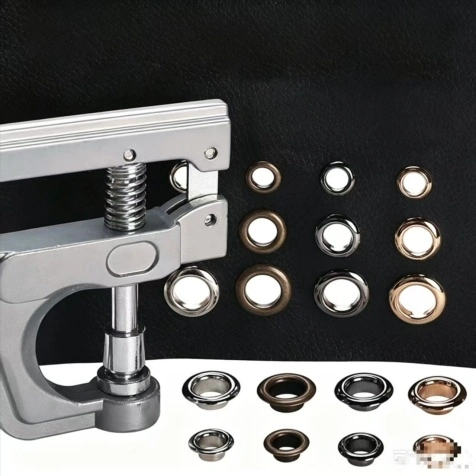

If you are installing by hand you will need a grommet setting kit including an anvil base, setting tool and a cutting punch that matches the inner diameter of your grommet. The cutting punch will cut clean holes in cloth without damaging the edges. The anvil is a stable surface that can take the force of the crimping. The fixing tool features a rounded top that rolls the barrel over the washer to provide a solid mechanical bond. A rubber hammer may be used to deliver regulated force that will not damage the finish of the grommet. These tools are good for small batch or sample production.

Machine-Assisted Solutions for High-Volume Production

Pneumatic or hydraulic grommet presses are useful for production lines that make thousands of bags every week. These tools consistently apply crimping pressure, which cuts the time needed to place grommets eyelets from 30 seconds to less than 5 seconds. Automatic feeds precisely place grommets, which keeps operators from getting tired and raises the quality of the work. For medium- to high-volume jobs, pneumatic presses work well. For more complicated patterns and a range of grommet sizes, fully automatic CNC-controlled tools are better. Carol's 30-million-piece annual capacity and in-house electroplating plant allow for both prototype development and mass production runs, so they can handle a wide range of order amounts.

Material Selection Based on Application Environment

The product is made longer lasting by matching the materials to the environment. Outdoor bags that will be exposed to rain and UV light need grommets made of stainless steel or heavily plated zinc metal that won’t corrode. Inside, fashion objects can be made of lighter aluminium or standard zinc alloy that has been polished to appear good. For load bearing applications like climbing gear, thicker barrel walls and larger flange sizes are needed to spread the stress. Our 30mm outer round alloy eyelet grommet is available in specific options for many applications. Weighing 17.7 grams, it is available in a variety of sizes and colours that may be applied to everything from high-end purses to practical work gear.

Step-by-Step Process to Attach Metal Grommets

Marking and Preparing the Hole Location

Correct placement avoids extra work and waste of supplies. Once you have created your pattern, mark the centre point of the grommet with a fabric pen or tailor's chalk. Measure the lengths between several grommets to ensure that the seams and edges are aligned. Place the cloth on a self-healing cutting mat or level surface. Place the cutting punch on the mark and strike it with a mallet. The hole should be somewhat smaller than the grommet barrel diameter, usually 0.5 mm smaller, so that you can keep the grommet in place by friction while installing it.

Manual Installation Technique Using Hammer and Anvil

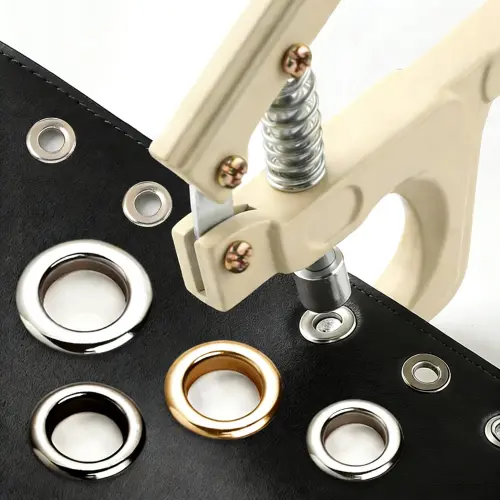

From the front, put the grommets eyelets barrel through the hole so that the lip is flat against the material. Turn the part over and slide the washer onto the barrel that sticks out. Place the material on the anvil so that the barrel goes through the hole in the middle of the anvil. Put the curved head of the fitting tool on the end of the barrel. Use three to five controlled hits with a mallet to hit the setting tool hard. The barrel will move outward and downward, which will hold the washer in place. Check the crimp. It should be flat, centered, and not cracked.

Machine-Assisted Installation for Production Efficiency

Pneumatic tools make it easy to put stuff in. Place the material on the bed of the press and align the die with the previously punched hole. Insert grommet barrel from underneath. As you lower the press head, the washer is fed in mechanically and the proper amount of pressure is provided. The clip is done by the machine all at one hit therefore the standard is always equal. An adjustable pressure setting accommodates various thicknesses of material and grommet sizes. Carol’s quality control system tests each batch for tensile strength and sturdiness to ensure it fulfills international standards such as the ISO9001 and SMETA certifications that major names require.

Troubleshooting Common Installation Issues

The material often tears if the holes are cut too small or the crimp force is too high. If the barrel breaks, it suggests that the metal may not be flexible enough, which is a sign of bad alloy composition. The screw can shift during installation, causing the crimps to be out of place. this is avoided by the use of guide bolts. Batch-to-batch variations in colour indicate that the electroplating controls are not working properly. When you partner with manufacturers that have their own plating facilities, like Carol's 4,500 sq. ft. facility with state-of-the-art die-casting and milling machinery, you eliminate the third-party unpredictability and you ensure that all of your large orders are the same colour.

Conclusion

To become good at installing metal grommets, you need to choose the right materials, use the right tools, and follow exact steps. To get uniform quality, you need to know how the properties of the material, the design of the tool, and the installation pressure all work together. This is true whether you're using hand methods for artisan production or automatic equipment for mass production. When compared to plastic options, metal grommets eyelets are more durable and have different uses than rivets and snaps. To do a good job of procuring, you need to look at the qualifications, output capacity, and customizable options of each provider. Working with integrated makers makes the supply chain simpler and makes sure that quality is the same for all big orders.

FAQ

What's the difference between a grommet and an eyelet?

Eyelets are one-piece fasteners where the barrel folds back on itself, making them good for lighter jobs. With a separate washer, grommets are made of two pieces that work together to make them stronger for heavy-duty use. In everyday speech, the terms can be used to mean the same thing, but procurement specifications should make it clear which type of construction your application needs.

How do I choose the right inner diameter for my application?

The inner width should be big enough for the cord, strap, or clip to fit through with little resistance. Add 2 to 3 mm of space around the object's diameter. Our 15mm inner diameter grommet works with straps and drawstrings that are medium weight. Smaller sizes work for things like shoelaces or decorative cording, while bigger holes are better for thick ropes or air flow needs.

Can metal grommets be removed and reused?

By mechanically binding, metal grommets make systems that last. Taking the grommet out usually hurts both it and the cloth around it. Planning the right spot during the first installation saves a lot of money on repairs. Using temporary fixings to make a prototype before committing to installing grommets helps finish the design.

Why do some grommets show color variations between batches?

Changes in color are caused by uneven electroplating. When suppliers outsource plating, they lose control over the chemicals used in the bath and the timing of the process. Carol runs our own electroplating plant and keeps a close eye on the nickel, zinc, and decorative plating processes. This vertical integration makes sure that colors are the same from batch to batch, which is very important when brand clients reject orders because the hardware doesn't match.

Partner with Carol for Reliable Grommet Supply

Carol offers a wide range of hardware options for bag makers who need reliable grommet eyelet sources with tested quality systems. Our 4,500-yen building has more than 100 specialized tools that make 30 million pieces a year, including prototypes and large sales. When you do your own electroplating, you don't have to wait for a third party, and the finish will be the same throughout the whole production run. We can change the sizes, colors, and materials to fit your exact needs. Our 30mm outer round alloy grommets eyelets in light gold is just one example of a wide range that can be tailored to your needs.

With ISO9001, SMETA, and SGS certifications to back us up, we meet global brand compliance standards. Having design, manufacturing, finishing, and quality testing all in one place is something that procurement managers really like about our method. It cuts down on delivery times and makes managing suppliers easier. To talk about your gear needs, email our team at tony@carolxiao.com. Visit carolhardware.com to see our full catalog of Products and learn how our knowledge can improve the way you source things.
