Metal Dog Hook Types

In the field of bag manufacturing, metal dog hooks, as the core hardware accessories for connection, suspension, and adjustment, directly affect the durability, functionality, and user experience of the product. According to the data, the market size of our country's metal dog buckle market will reach 1.14 billion yuan in 2024, of which metal doghooks for bags account for more than 40%, and with the improvement of consumers' quality requirements, the demand for high-end products with high strength and corrosion resistance is growing at an annual growth rate of 18.7%. This article will systematically disassemble the type system.

Structure and Working Principle Of the Metal Dog Hook

The core structure of the metal dog hook consists of four main parts: the hook body, the spring mechanism, the rotating bearing and the connecting ring. Its working principle is based on lever mechanics and spring rebound mechanism: when the user presses the spring mechanism, the hook mouth opens; When released, the spring automatically closes the hook mouth to create a secure lock. This design ensures a balance between quick connections and reliable fixation.

Modern dog hook designs often feature a 360-degree swivel bearing structure, an innovation that effectively prevents webbing entanglement issues and extends product lifespan. The quality of the rotating bearing directly affects the smoothness and wear resistance of the hook in use, and high-quality bearings should have the characteristics of low friction coefficient and high rotation rate, usually requiring to withstand at least 50,000 rotational cycles without significant wear.

Analysis of the Main Types Of Metal Dog Hooks

Classification By Spring Mechanism Structure

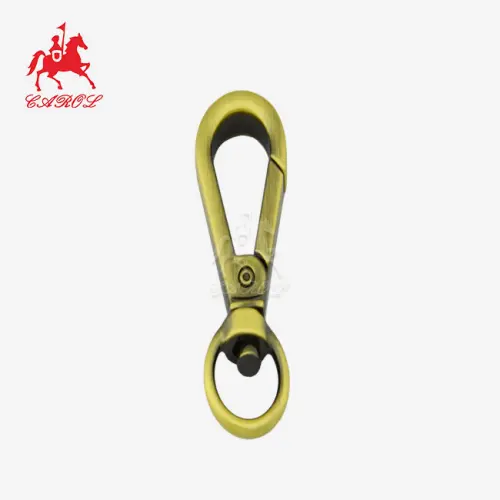

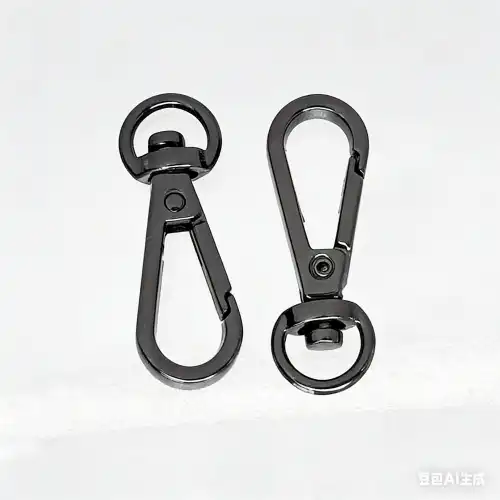

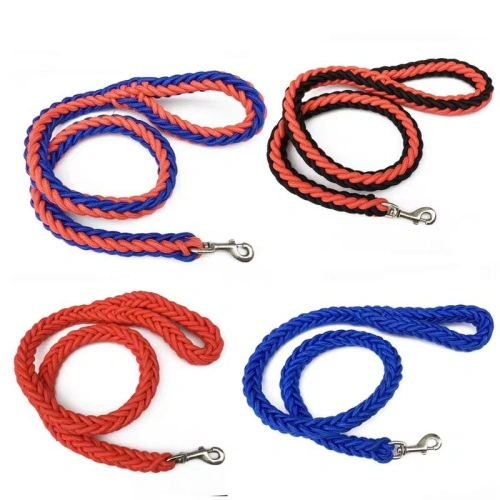

Trigger snap hook is the most common metal dog hook type on the market. Its mechanism design is similar to a firearm trigger, and the operation is intuitive and convenient. The advantage of this structure lies in the convenience of one-handed operation and the large opening angle of the hook mouth, making it suitable for applications that require frequent disassembly. The springs of trigger dog hooks are typically made of stainless steel, ensuring a stable rebound during repeated use. For products such as daily bags, sports backpacks, and pet leashes, trigger dog hooks are the preferred option.

Push gate snap hook adopts a side-pressed opening method, and the mechanism is more discreet and compact. This design is particularly suitable for occasions where the risk of accidental opening needs to be reduced, such as hiking bags, tool kits and other professional equipment. The mechanical strength of the press-type structure is usually higher than that of the trigger type because of its more uniform stress distribution, but it requires both hands to work together during operation, which is slightly less convenient.

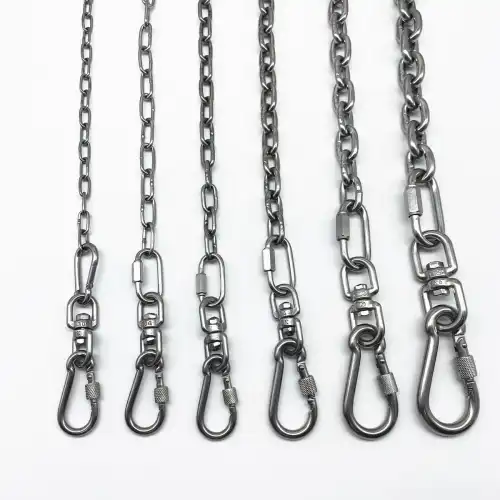

Screw lock snap hook adds a spiral safety lock to the standard dog hook for secondary locking by rotating the lock sleeve. This design significantly improves the safety factor and is suitable for carrying systems for high-value items, such as camera bags, valuable toolboxes, etc. The thread accuracy of spiral locks is high, usually requiring more than level 6 accuracy to ensure the reliability and smoothness of the lock.

Classification By Shape Structure

Oval dog hooks are classic designs with good mechanical properties and wide applicability. The oval shape allows for the dispersion of the force points, the load-bearing capacity is strong, and the standard size oval dog hook (inner diameter 20-25mm) can usually withstand a pulling force of 150-300kg. This dog hook is suitable for medium to large bags, such as travel bags, backpacks, etc.

The pear-shaped dog hook has a narrow attachment end and a wide hook mouth end, a design that optimizes the fit with the D-ring. The pear-shaped construction allows the hook to fit better at the attachment point when stressed, reducing wobble and wear. This type is particularly suitable for applications that require a stable connection, such as shoulder strap systems for briefcases, camera bags, etc.

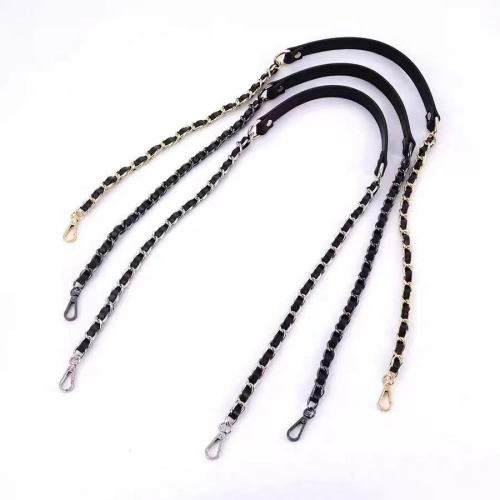

Round dog hooks are the most compact and suitable for small, lightweight products. Although the weight capacity is relatively low (usually 50-120kg), its small size and light weight make it ideal for lightweight products such as wallet chains and small satchels.

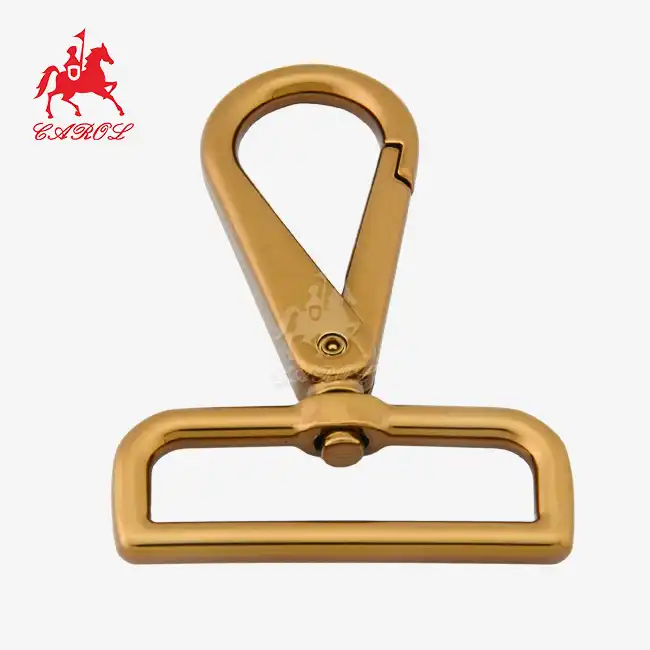

Square or rectangular dog hooks are mainly used for special design needs, and their straight edges can fit perfectly with square D-rings or other rectangular connectors, and are more commonly used in bags with industrial style or minimalist designs.

Classification by Size

Metal dog hooks are typically sized by the inner diameter of the hook and the overall length. Small dog hooks (inner diameter 10-15mm, overall length 30-50mm) are suitable for light-load applications, with a load capacity of 30-80kg. They are commonly found on products such as wallet chains, small shoulder bags, and cosmetic bags. Medium dog hooks (inner diameter 18-25mm, overall length 50-80mm) are the most widely used size, with a load capacity of 150-300kg, making them suitable for most everyday bags. Large dog hooks (inner diameter 30mm or greater, overall length 80-120mm) are used for heavy-duty applications, such as large suitcases and cargo bags, and can handle loads exceeding 500kg.

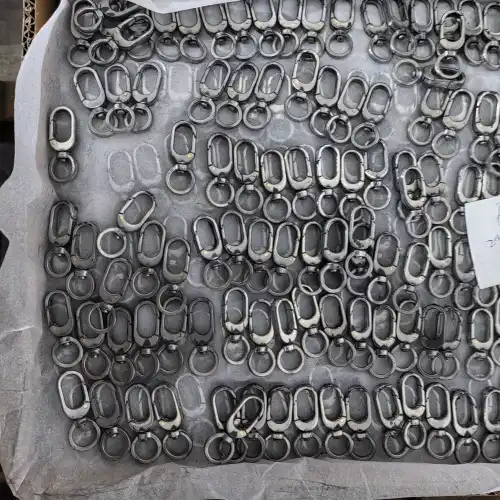

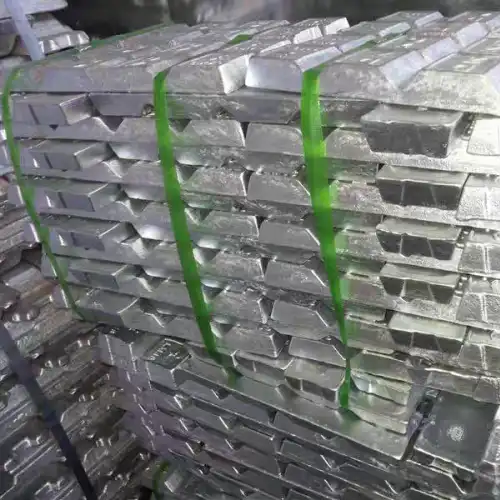

Zinc Alloy Material

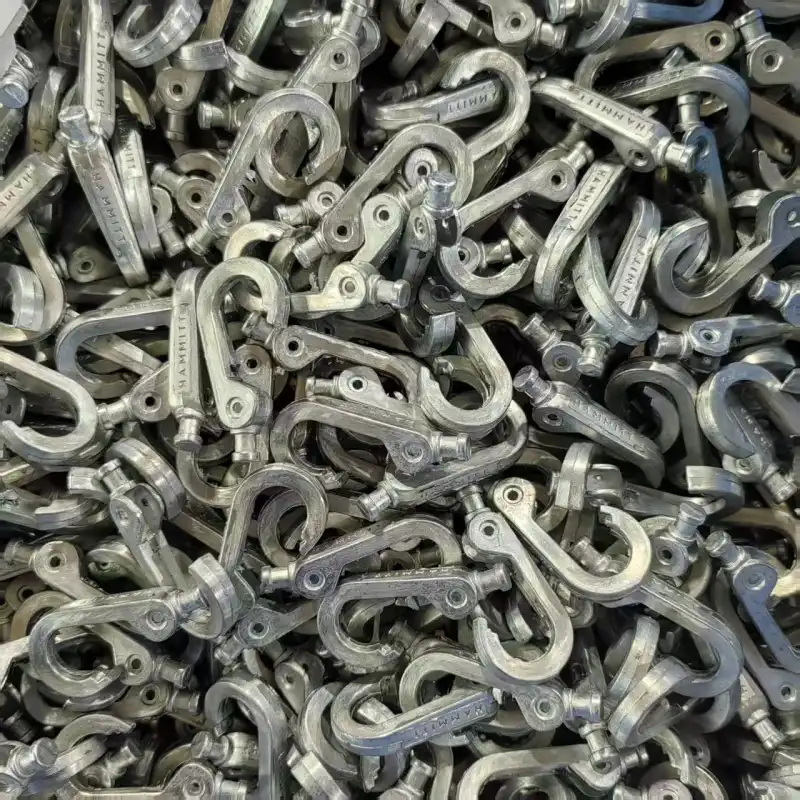

Zinc alloy is the most cost-effective option and is widely used in the low-end bag market. Modern zinc alloy metal dog hooks usually use Zamak 3 or Zamak 5 alloy, which have good casting properties and sufficient mechanical strength. The tensile strength of zinc alloy is usually between 263-317 MPa, which can fully meet the needs of general daily bags.

The main advantages of zinc alloy include: high production efficiency, which can achieve integrated die casting for complex shapes; Good surface treatment, easy to achieve a variety of colors and textures; Excellent cost control and suitable for mass production. However, its corrosion resistance is relatively weak and it is prone to oxidation in humid or salt spray environments, so effective surface treatment is necessary. For products exported to coastal or high humidity areas, it is recommended to use electroplating or powder coating protection with a thickness of at least 8-10 microns.

If you're looking for a reliable and experienced manufacturer of metal accessories for handbags and leather goods, Carol Metal is your trusted partner. Founded in 2015 in Shenzhen, Guangdong, our factory specializes in producing premium-quality metal dog hooks, frames, and hardware for global customers. Our 22mm Inner Width Metal Dog Hook for Bags combines durability, refined craftsmanship, and elegant finishes such as Slip Gold and NF Nickel. We provide complete one-line service, from design and production to electroplating and packaging, all managed in-house to ensure consistent quality and fast delivery.

We welcome OEM and ODM customization in size, color, and material to perfectly match your brand's needs. Contact us today at tony@carolxiao.com to discuss your order and receive a competitive quotation. Let’s build long-term success together with Carol Metal's reliable craftsmanship.
